878D Soldering station

878D

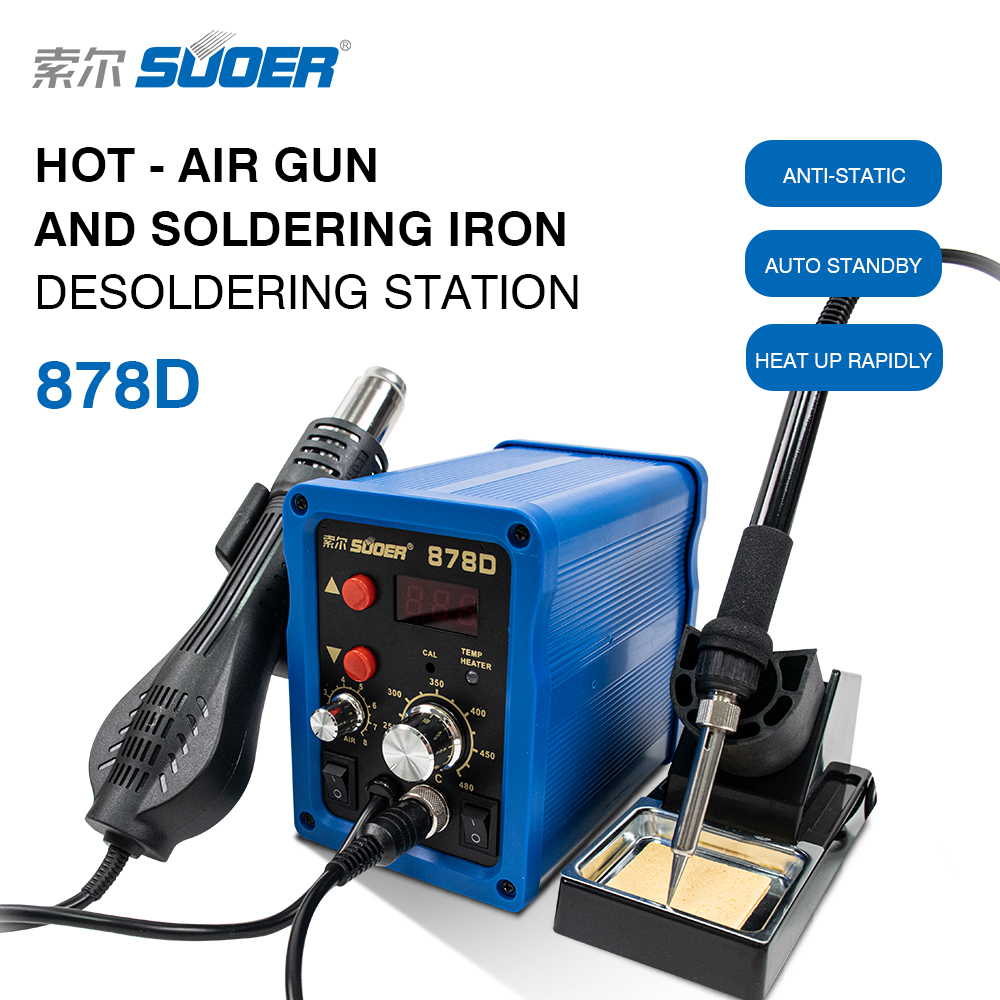

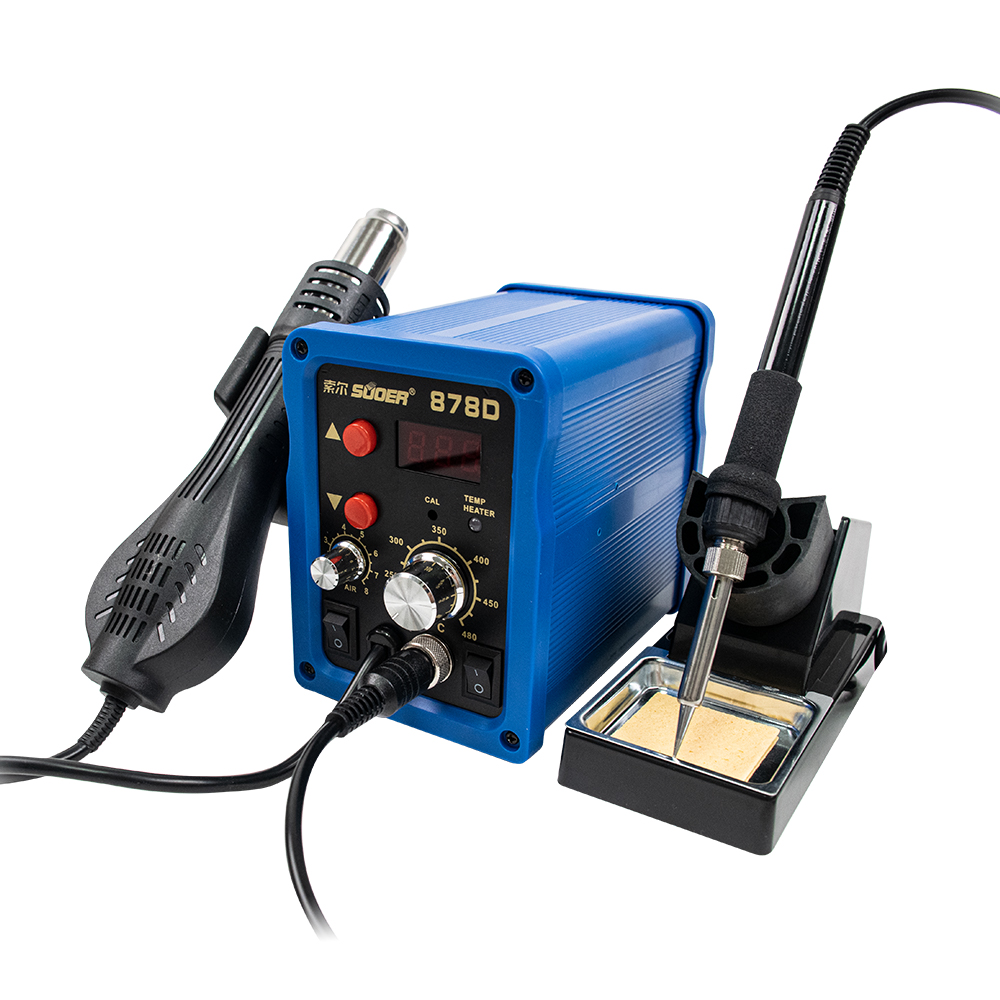

878D Soldering station

Soldering Stations

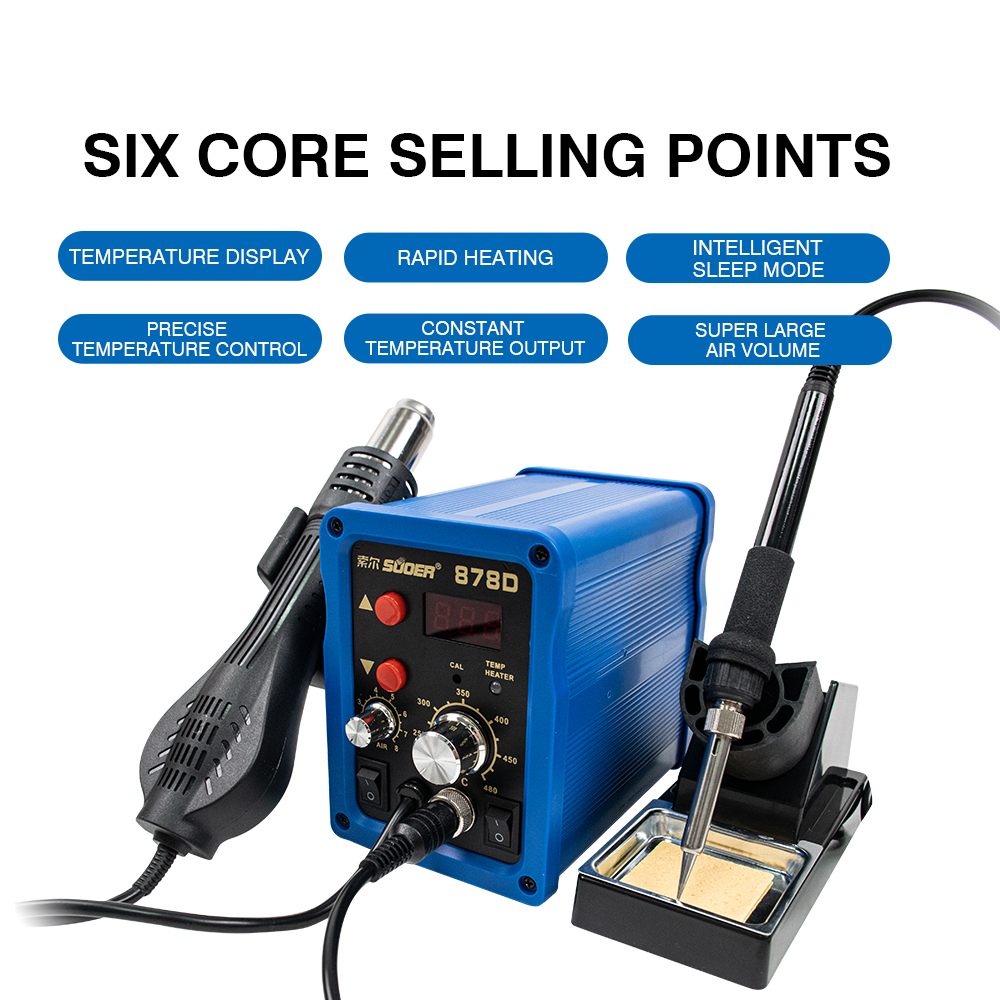

Features:

HT2080005 878D soldering station

1. Adopt high-quality brushless fan, with extremely long life (several times of brush motor), stable wind speed and no noise.

2. The handle has a built-in intelligent sensing device. As long as the handle is picked up, the system will automatically start the working mode.

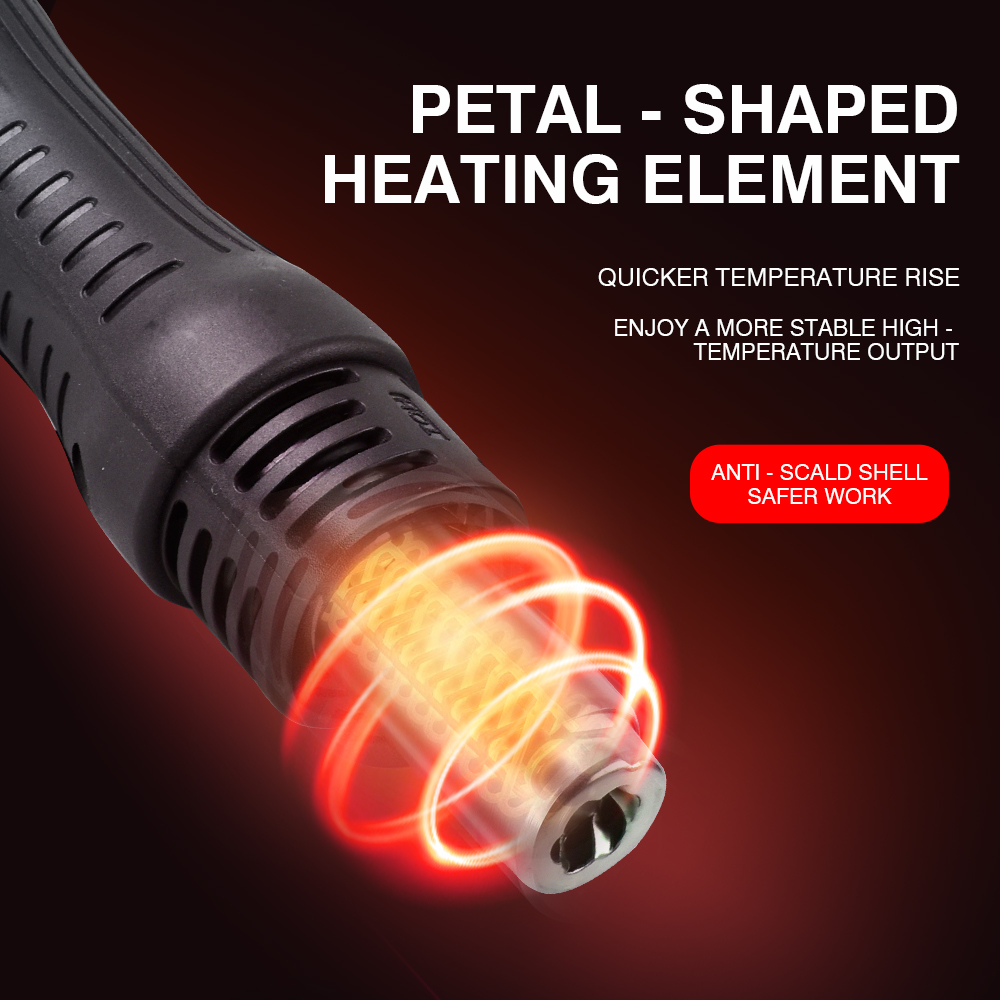

3. Using high-quality metal heating element, long life, high thermal efficiency, under the same power, the efficiency can be doubled.

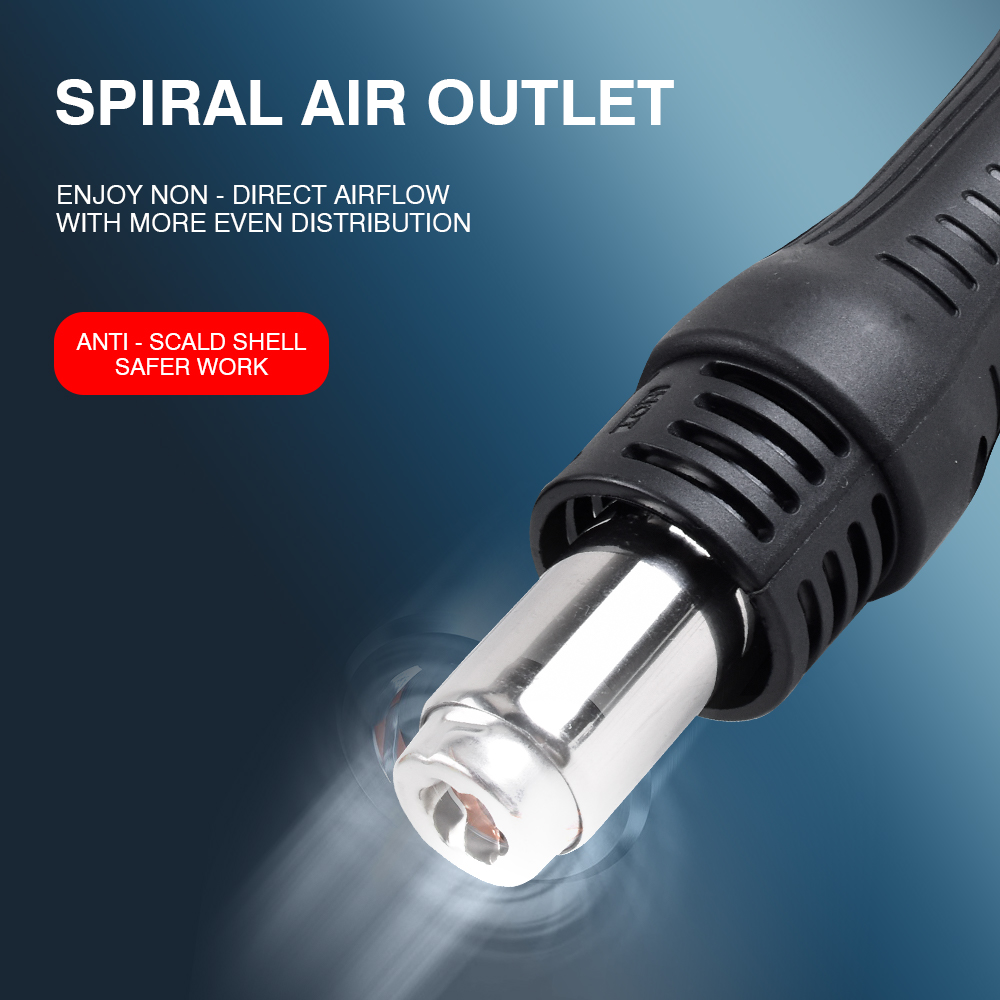

4. Soft rotating wind, even heating, better protection of components.

5. Sensor closed loop, microcomputer zero-crossing trigger temperature control, LED display, high power, rapid heating, accurate and stable temperature, not affected by air flow, and truly lead-free desoldering.

6. Combination design, saving space and cost.

7. 750W high-power rapid heating, rapid temperature recovery, suitable for lead-free soldering.

8. The two parts of the system can be operated independently without affecting each other.

INQUIRE NOW

SEND ENQUIRY

Specifications

Electricity soldering station

Soldering Station Brazing

Soldering station

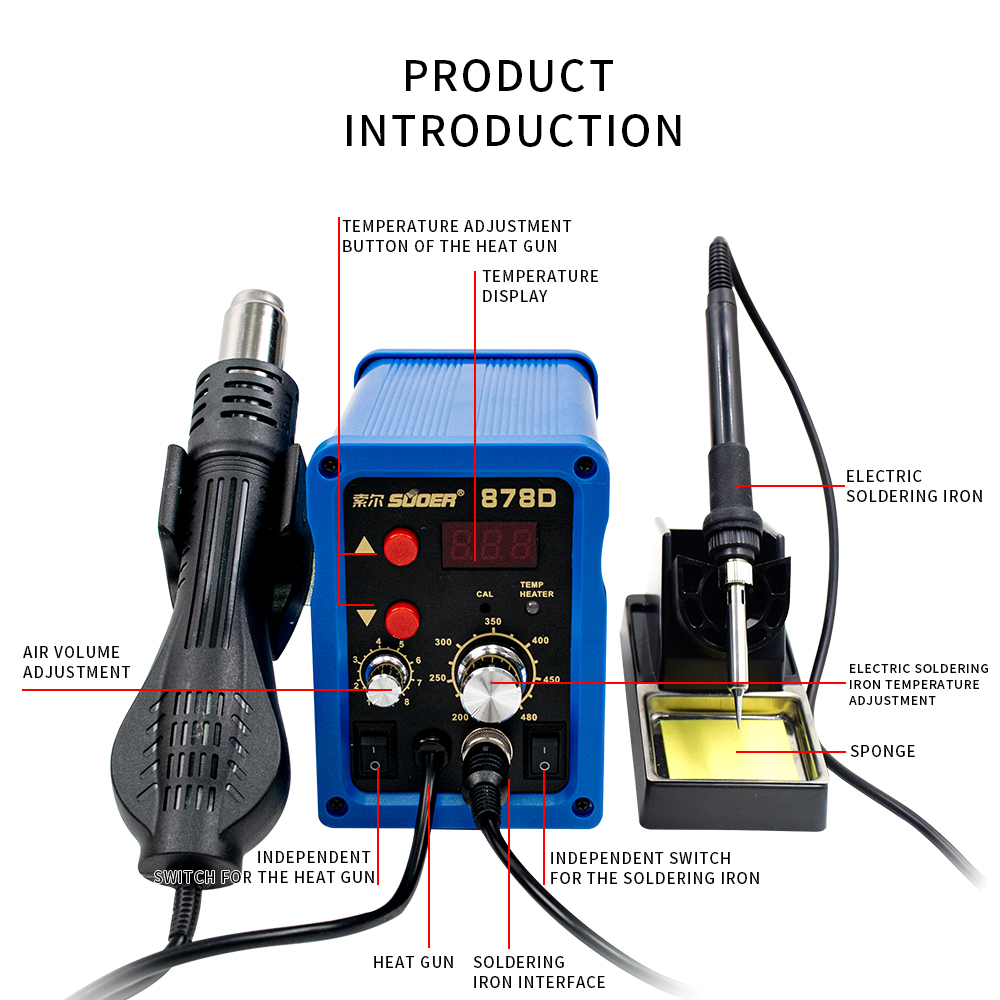

(1) According to the actual situation, rotate the wind and temperature range of the hot air welding table, remember that the temperature and wind should not be too large, so as not to burn the chip or components. Generally, the temperature is selected in 3 gear, and the wind is adjusted in 4 gear.

(2) Insert the power cord of the hot air welding table into the socket and turn on the power switch. At this time, you will hear the fan of the hot air welding table start to sound, indicating that the welding table is preheating, and when the sound stops, you can start to use.

(3) Aim the nozzle of the air gun at 2-3cm above the chip to be welded. Heat evenly along the solder joints around the chip, and when the solder joints have melted, remove the chip with tweezers.

(4) Place the chip at the part to be welded, and pay attention to whether the pin is aligned with the PCB welding pad, and whether the functional areas are placed correctly, so as to avoid the reverse connection of components. Use a hot air welding table to heat the solder joint until the chip is in good contact with the welding site.

(5) In order to ensure that the solder joint is in good contact with the main board, the welding is repaired with an electric soldering iron after welding, and the short circuit is disposed of.

(6) After the welding is completed, first turn off the power switch of the hot air welding table. At this time, the fan of the hot air welding table continues to work. After the fan stops rotating, unplug the power plug.

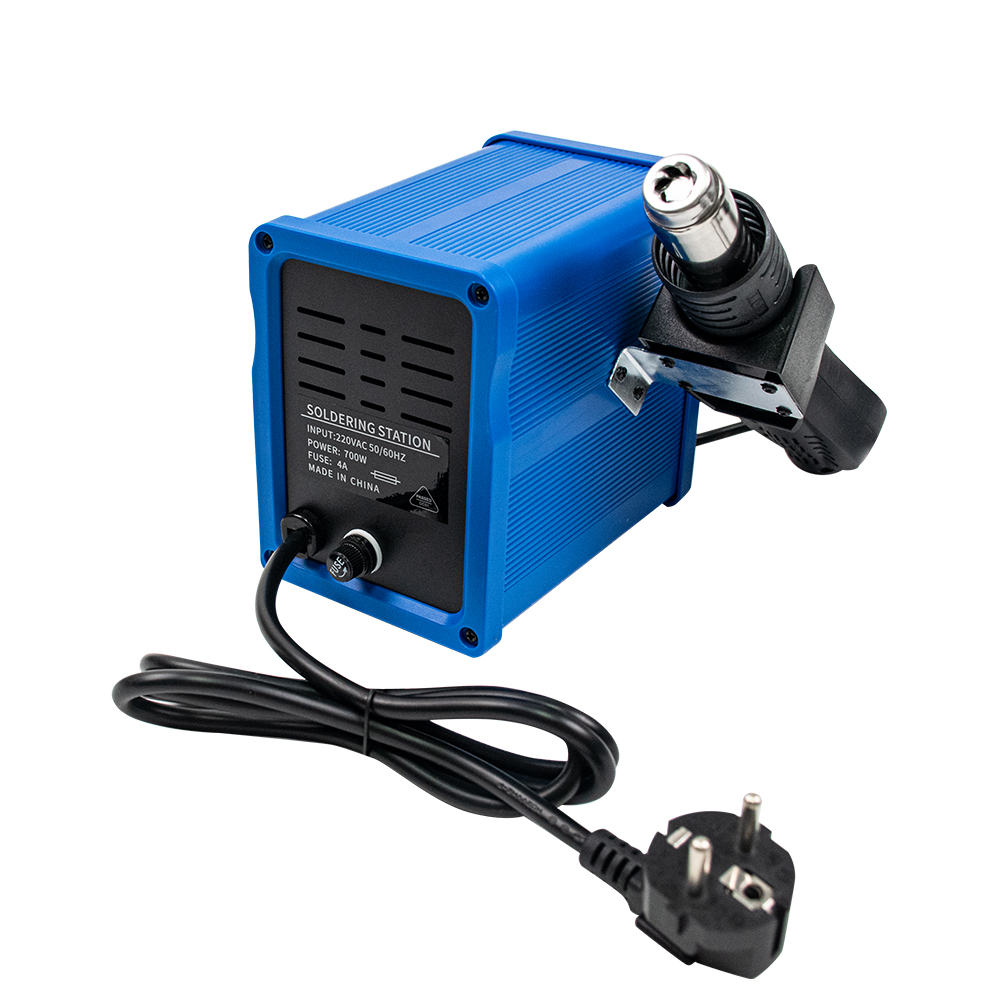

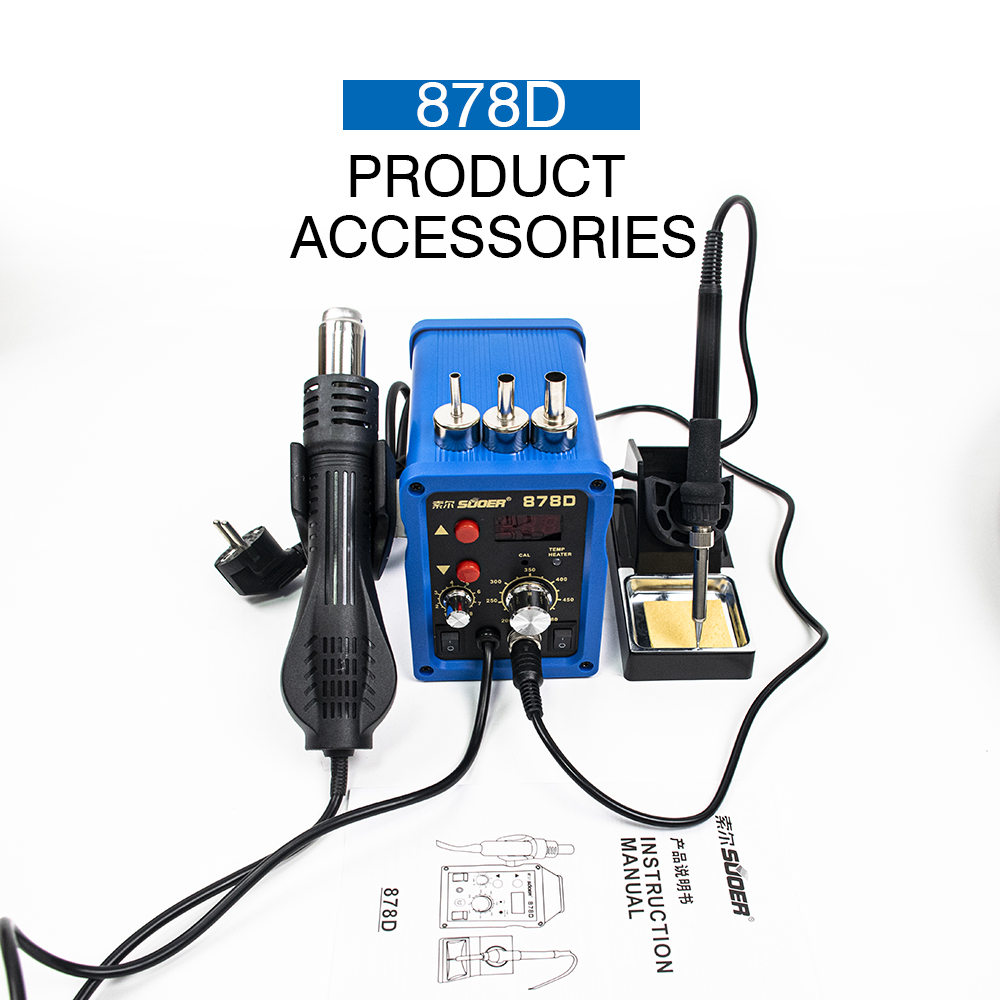

PRODUCT PHOTOS

1.Used in industrial production.

2.Mobile phone repair welding.

3.Mainboard maintenance welding.

4.Used for continuous welding on the production line.
