858D Soldering station

858D

858D Soldering station

Soldering Stations

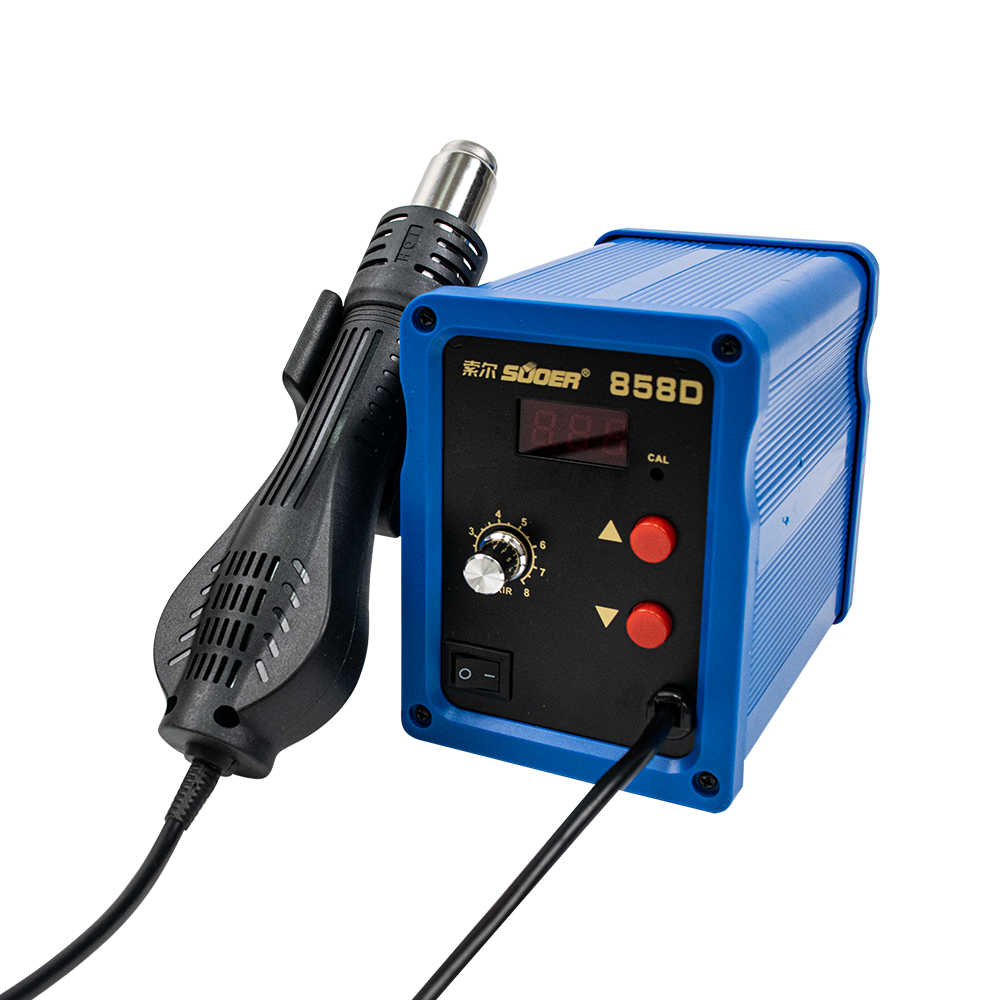

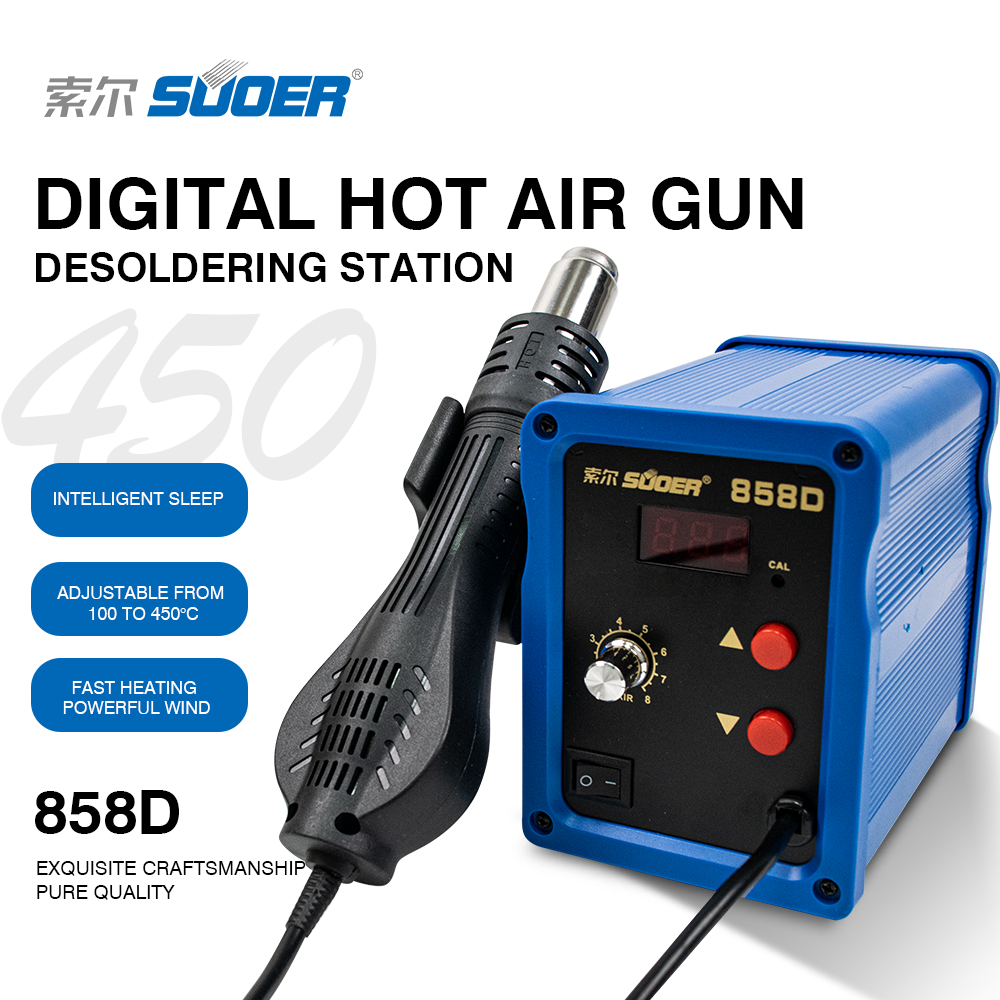

HT2080004 858D soldering station

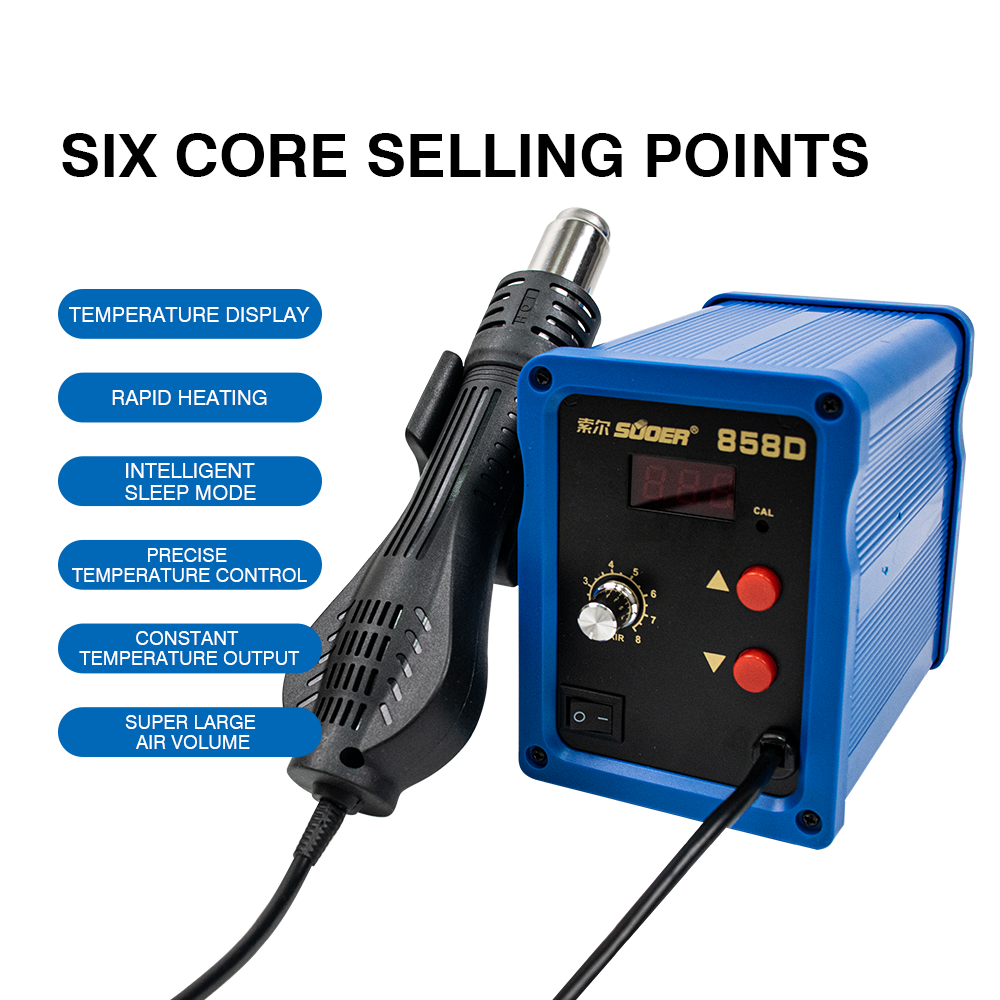

1. Closed circuit sensor, microcomputer zero crossing soft contact temperature control, LED visual display,lead-free soldering.

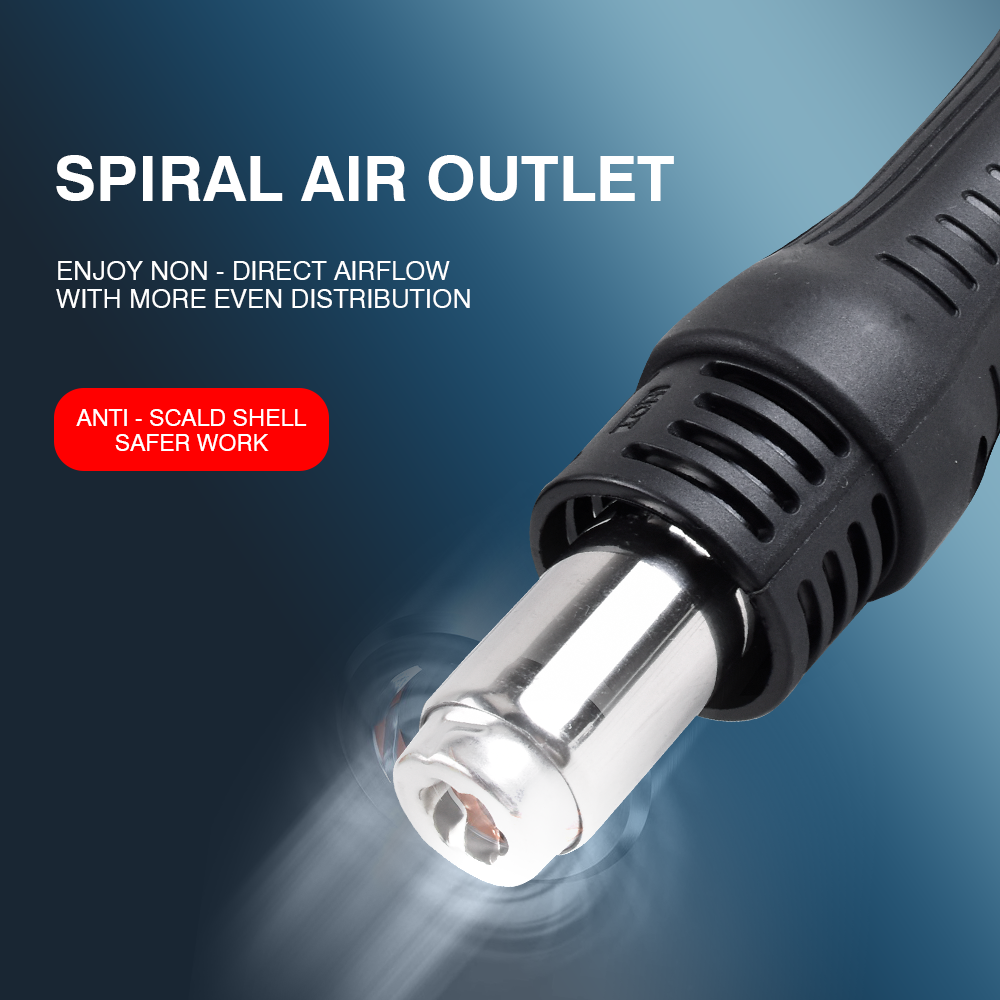

2. Adjustable air flow, large and soft air flow, convenient temperature adjustment,It is suitable for many purposes.

3. Handle with sensor switch, the system will enter the working mode

Hold the handle at the same time; The system will stand by when the hand is in place the operation is very convenient.

4. The automatic cooling function of the system will extend the heating life and protect the hot air gun.

5. Brushless fan with long service life and low noise.

INQUIRE NOW

Electricity soldering station

Soldering Station Brazing

Soldering station

(1) According to the actual situation, rotate the wind and temperature range of the hot air welding table, remember that the temperature and wind should not be too large, so as not to burn the chip or components. Generally, the temperature is selected in 3 gear, and the wind is adjusted in 4 gear.

(2) Insert the power cord of the hot air welding table into the socket and turn on the power switch. At this time, you will hear the fan of the hot air welding table start to sound, indicating that the welding table is preheating, and when the sound stops, you can start to use.

(3) Aim the nozzle of the air gun at 2-3cm above the chip to be welded. Heat evenly along the solder joints around the chip, and when the solder joints have melted, remove the chip with tweezers.

(4) Place the chip at the part to be welded, and pay attention to whether the pin is aligned with the PCB welding pad, and whether the functional areas are placed correctly, so as to avoid the reverse connection of components. Use a hot air welding table to heat the solder joint until the chip is in good contact with the welding site.

(5) In order to ensure that the solder joint is in good contact with the main board, the welding is repaired with an electric soldering iron after welding, and the short circuit is disposed of.

(6) After the welding is completed, first turn off the power switch of the hot air welding table. At this time, the fan of the hot air welding table continues to work. After the fan stops rotating, unplug the power plug.

PRODUCT PHOTOS

1.Used in industrial production.

2.Mobile phone repair welding.

3.Mainboard maintenance welding.

4.Used for continuous welding on the production line.
